Outlet 🎁 Painless 1992-1997 GM LT1 Harness Extra Length 60505 ⌛

This harness is standalone and is not intended to replace the OEM engine wiring. Standalone harnesses are intended to run the designated engine & transmission only, generally when swapped into another vehicle.

This harness is designed for 1992-1997 5.7L LT1/LT4 & 4.3L (V8) L99 engines with a 4L60E transmission, using a ’94-’97 ECM. This harness will not work with ’92-’93 ECMs . These engines and transmissions were factory equipped in Camaro, Firebird, Corvette, Roadmaster, Impala and Caprice. These harnesses also include a VATS bypass module, painless part #64024. The 4L60E transmission used must be a 1994+ which utilizes a 13th pin on the transmission connector. When using either of these harnesses on a ’96 or ’97 engine you must replace the coil, coil output wire and knock sensor with the parts from a ’92 -’95 engine. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation.

This extended length harness allows eight feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the seat or in the center console.

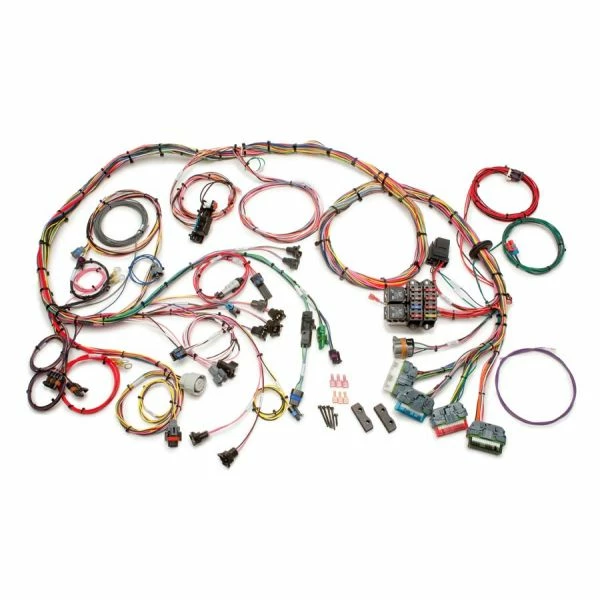

This kit includes:

1. All new fuel injection harness with OEM fitment connectors and harness breakouts.
2. OBDII connector, mounting bracket and check engine light.
3. Vehicle Anti Theft System (VATS) bypass module
4. Rubber grommet.
5. Mounting hardware.
6. Installation manual.

This harness also requires the following mating parts; ECM #16188051 or #88961150.

We recommend checking the online manual for the full list of required mating parts prior to ordering.

Part Number: 60505 Engine: 4.3L (V8), 5.7L Sequential Fuel Injection Trans.: 4L60E
