Best Pirce ⌛ TERMINATOR X 58X/4X EV6 LS MPFI KIT 550-905 🛒

Original price was: $428.00.Current price is: $92.99.

High quality products, hassle-free returns.

100% Quality Satisfaction

100% Quality Promise

Free Shipping over $25

Designed for GM LS Engines with 58x Crank, 4x Cam – and EV6 Injectors

Real-Time fuel map learn, takes the guess work out of tuning your base fuel table

High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control

MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)

4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake

4 Outputs – Ground, PWM – , for accessories such as; fans, boost control, nitrous control, IAC Kit, and more

Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties

Nitrous Control – single channel of wet or dry, progressive or non-progressive, rich/lean safeties, and target Closed Loop AFR

On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance

Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!

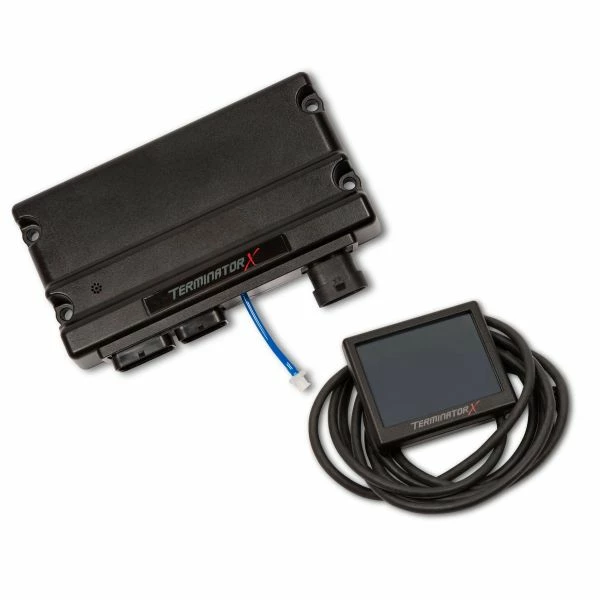

The included 3.5″ Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display

The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!

Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3″ digital dash support!

Free EFI Tuning Software for complete control of your Terminator X power plant

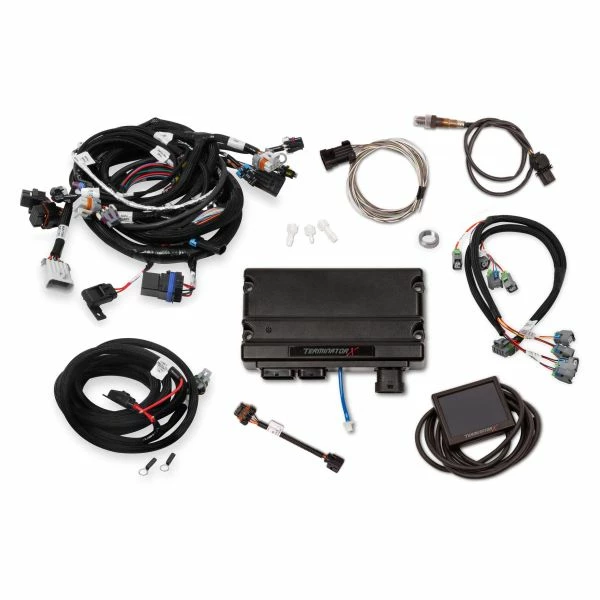

Includes: 58x/4x LS Engine Main Harness – EV6 Injector Harness – Terminator X ECU – ECU Main Power Harness – Bosch LSU 4.9 Wideband Oxygen Sensor – Input/Output Harness – and assorted vacuum adapters.
